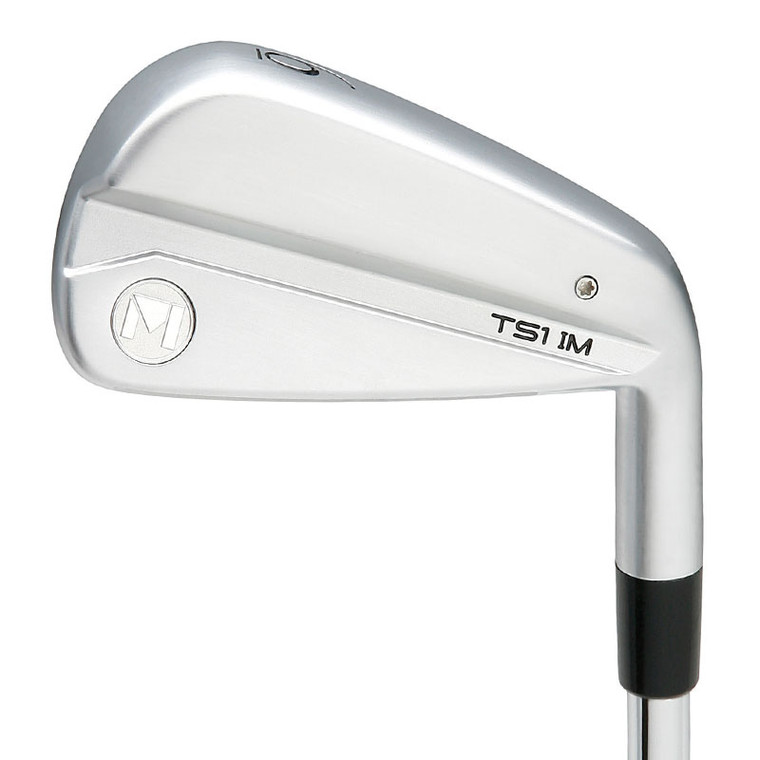

Maltby TS1 IM Custom Irons
Maltby TS1 IM Custom Irons

Step 1 - head

Edit

Step 2 - shaft

Edit

Step 3 - grip

Edit

Step 4 - customize

Edit
Starting at $0.00

1 Item Added To Cart

Maltby TS1 IM Custom Irons

Maltby TS1 IM Custom Irons

  • Customization:
  • Head:
  • Shaft:
  • Grip:

1 X

Maltby TS1 IM Custom Irons

Starting at 59.99

Step 1 - Choose your headEdit

Step 2 - Choose your shaftEdit

Step 3 - Choose your gripEdit

Step 4 - Customize your clubEdit

*Note that each components (grip, shaft, head) as well as a custom club product will be added to cart under there own line item. If you selected PUREing you will see the charge for PUREing under the custom club product.

Design Details
The Maltby TS1 IM (Injected Muscle) Forged Irons are a true billet forged 3 piece iron design that delivers performance and feel unlike any other muscle back iron head. This incredible playability and direct feedback comes from a combination of a very low and centered vertical center of gravity, modern loft specifications, soft polymer material injected throughout the entire club head and a new 2.1mm Super Maraging steel face.

Revolutionary Construction
Forged using a Precision 5 Step Forging process for very precise parts requiring very little polishing to provide unparalleled sspecification tolerances. The TS1 IM head design features a 2.1mm Super Maraging steel forged face and a forged 1025C carbon steel body with an internal tungsten weight co-forged low and towards the toe inside the club head. The co-forged tungsten centers the vertical center of gravity location for a more stable head not typically found in a muscle back design. The pieces are then precision welded together leaving a void behind the entire club face that is injection filled with a proprietary polymer to enhance ball speeds and provide an exceptional feel on both center and off center hits.

Superb Playability
The overall profile of the TS1 IM Forged Irons certainly give the appearance, both in the bag and in the playing position, of a traditional blade but offer Super Game Improvement (PF701+) playability performance throughout the entire set. With an actual MPF number approaching 800 points, the TS1 IM offers more forgiveness than the majority of game improvement and or cavity back irons

High Speed Super Maraging Steel Face

The TS1 IM face is forged from MS300 Super Maraging steel. MS300 is stronger than standard Maraging steel due to its superior elongation and yield strength allowing for a thinner, 2.1mm face thickness, resulting in higher ball speeds off of the club face. MS300 Maraging steel is a low carbon, nickel-cobalt-molybdenum high-temperature nickel alloy that produces a very soft feel.

TS1 IM vs Original TS1

  • MS300 high speed Maraging steel face for increased ball speeds vs. traditional carbon steel faces
  • Added polymer and co-forged tungsten toe weighting into the entire set for a more consistent feel and carry distances
  • Modified bounce angles, sole radius' and sole widths for more forgiving turf interaction in the short irons and wedges
  • Improved loft separation in the short irons and wedges for more consistent yardage gapping
  • Reduced progressive offsets throughout the set as preferred by better players
  • Cleaner looking aesthetics with an anti-glare Pearl Nickel Chrome finish

Features:

  • Available Spring 2023
  • Model masters and tooling created using precision 3D CAD
  • True Forged with a 1025C Carbon Steel body and MS300 Maraging Steel face, using the most advanced 5 step forging process available
  • Hollow polymer injection filled 3 piece construction throughout the whole set
  • A stunning Pearl Chrome finish reduces glare and offers excellent durability
  • Unparalleled playability and feel for a true forged muscle back design
  • Injected Polymer produces higher ball speeds with exceptional sound and feel
  • Super Game Improvement (PF701+) design
  • CNC milled face ensures face flatness for more consistency
  • Multi-Groove technology places more CNC milled square grooves on the face for improved consistency, trajectory and spin
  • Attractive and durable Pearl Nickel Chrome anti-glare finish protects the club head and enhances feel
  • Reduced progressive offsets throughout the set as preferred by better players
  • Progressive sole angle (bounce), modern tour leading edge grind and 4 way radius sole provides the optimum turf interaction from a variety of turf conditions.
  • Modern lofts, combined with the optimal vertical cg locations, optimizes trajectory and distance.
  • Universal hosel accepts both .370" parallel tip and .355" taper tip iron shafts.
  • Recommended Ferrule - 74PI
  • Note: This is a club head only and not an assembled golf club

Maltby TS1 IM Forged Iron Clubhead Specifications

Details

MPF: 728
Finish: Pearl Chrome
Face Material: MS300 Maraging Steel
Body Material: 1025C Carbon Steel
Blade Length: 3.161"
Toe Height: 1.045"
Hosel Length: 2.220"
Hosel OD: .520"
Sole Width: .740"-.770"
Bore Depth: 1.375"-1.250"
C.O.G.: .788"
M.O.I.: 11.8759 oz-in²

Specifications

Loft +1⁰ Lie +1⁰ Wt +3g Offset Hosel ID Bounce RH/LH
3 20⁰ 60⁰ 239 0.110" UNIV 3⁰ RH
4 22⁰ 60.5⁰ 246 0.110" UNIV 3⁰ RH
5 25.5⁰ 61⁰ 253 0.100" UNIV 3⁰ RH
6 29⁰ 61.5⁰ 260 0.100" UNIV 4⁰ RH
7 32.5⁰ 62⁰ 267 0.090" UNIV 4⁰ RH
8 36⁰ 62.5⁰ 274 0.090" UNIV 4⁰ RH
9 40⁰ 63⁰ 281 0.090" UNIV 5⁰ RH
P 44⁰ 63.5⁰ 288 0.080" UNIV 5⁰ RH
G 48⁰ 64⁰ 292 0.080" UNIV 5⁰ RH
