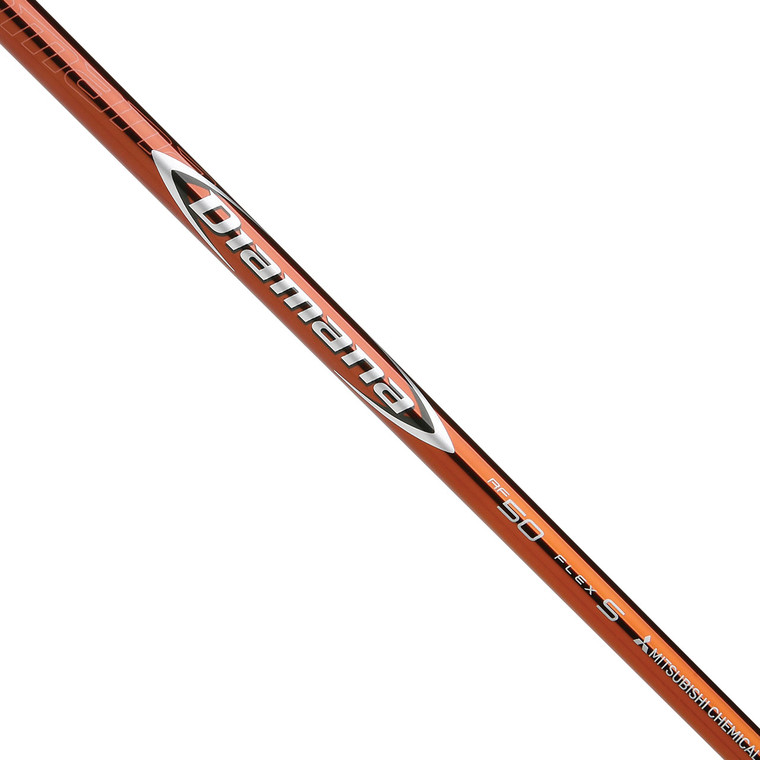

RF-Series
We’ve taken our tour proven, time tested Red Board profile and enhanced it using Mitsubishi Chemical's latest design and material innovations, to create the next generation Diamana™ RF-Series. Strategically positioned DIALEAD® Pitch Fiber, MR70 and boron fiber infused hybrid prepreg deliver unmatched strength, stability and performance from this higher launching profile.
Engineering
The Diamana™ RF-Series represents the next generation version of our signature “active” bend profile. The new RF-Series, like its most recent predecessor the Diamana™ R-Series, incorporates high-strength DIALEAD® Pitch Fiber by Mitsubishi Chemical into the butt-section of the shaft, adding unprecedented strength and control during shaft loading and unloading.
Featured Material: MR70
The new Diamana™ RF-Series incorporates for the first time a new hybrid prepreg developed by the engineers at Mitsubishi Chemical. This new prepreg combines boron fiber and our latest carbon fiber innovation, MR70. Mitsubishi Chemical’s MR70 by is 20% stronger and has 10% higher modulus than conventional carbon fibers. Strategically positioned in the tip-section of the shaft this hybrid prepreg provides unprecedented strength and stability at impact.
Shaft Name |
Flex |
Length (in) |
Weight (g) |
Tip O.D. (in) |
Tip Length (in) |
Butt O.D. (in) |
Torque (degrees) |
Kick Pt. |
---|---|---|---|---|---|---|---|---|
Diamana™ RF-Series 50 |
R |
46 |
56 |
0.335 |
3 |
0.610 |
4.4 |
MID |
Diamana™ RF-Series 50 |
S |
46 |
58 |
0.335 |
3 |
0.614 |
4.3 |
MID |
Diamana™ RF-Series 50 |
X |
46 |
59 |
0.335 |
3 |
0.616 |
4.3 |
MID |
Diamana™ RF-Series 60 |
R |
46 |
62 |
0.335 |
3 |
0.616 |
3.5 |
MID |
Diamana™ RF-Series 60 |
S |
46 |
65 |
0.335 |
3 |
0.620 |
3.5 |
MID |
Diamana™ RF-Series 60 |
X |
46 |
68 |
0.335 |
3 |
0.624 |
3.4 |
MID |
Diamana™ RF-Series 60 |
TX |
46 |
71 |
0.335 |
3 |
0.626 |
3.4 |
MID |
Diamana™ RF-Series 70 |
S |
46 |
73 |
0.335 |
3 |
0.616 |
2.9 |
MID |
Diamana™ RF-Series 70 |
X |
46 |
76 |
0.335 |
3 |
0.620 |
2.9 |
MID |
Diamana™ RF-Series 70 |
TX |
46 |
79 |
0.335 |
3 |
0.622 |
2.9 |
MID |
Diamana™ RF-Series 80 |
S |
46 |
83 |
0.335 |
3 |
0.616 |
2.7 |
MID |
Diamana™ RF-Series 80 |
X |
46 |
86 |
0.335 |
3 |
0.620 |
2.7 |
MID |
Diamana™ RF-Series 80 |
TX |
46 |
89 |
0.335 |
3 |
0.624 |
2.7 |
MID |
